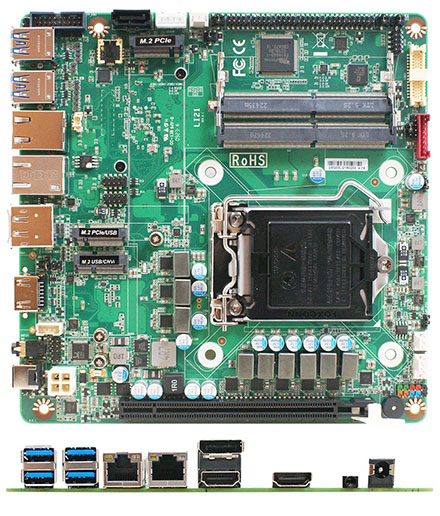

Jetway LI21-Q470E Thin-ITX (Intel LGA1200 Socket, Comet Lake-S Q470E, Half-Height)

Jetway LI21-Q470E Thin-ITX (Intel LGA1200 Socket, Comet Lake-S Q470E, Half-Height)
  • Intel Comet Lake-S Q470E !
  • 2x LAN !
  • Half Hight !
  • Mini ITX !

  • Intel® LGA1200 Socket supports 10/11th Gen. Core Processor (Max 65W)
  • Intel® Comet Lake-S H420E chipset
  • 2* DDR4 2933/2666MHz up to 64GB
  • 1* Intel®i226-V 2.5GbE, 1* Intel® i219-LM GbE
  • 1* M.2 M-Key (PCI-Ex4), 1* M.2 E-Key (CNVi/PCI-Ex1/USB2.0), 1* M.2 B-Key (PCI-Ex1/USB3.2/USB2.0)
  • 1* SATA III (6Gb/s), 1* PCI-E x16 slot
  • 1* DP (Co-lay VGA), 2* HDMI, 1* LVDS/eDP Output
  • 2* RS232/422/485, 4* RS232, 4* USB3.2 (Gen1), 4* USB2.0
  • Support Onboard TPM2.0 (LI21-Q470E2, option)
  • 12-28V DC-in
  • Thin Mini-ITX Form Factor (170x170mm)





Share

389.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks

Add to cart
Model – LI21-Q470E
– LI21-Q470E2 (Onboard TPM2.0)
Form Factor – Thin Mini-ITX (170 * 170mm)
Processor System – Intel® LGA1200 Socket supports 10/11th Gen Core Processor, Max. 65W
– Intel® Comet Lake-S Q470E Chipset
– AMI 256M Flash ROM
Memory – 2* DDR4 3200/2933MHz SO-DIMM up to 64GB
Storage – 1* M.2 M-key (2280, PCI-Ex4 interface, support NVMe SSD)
– 1* SATAIII
Expansion – 1* M.2 E-key (2230, CNVi/PCI-Ex1/USB2.0, support WIFI/BT)
– 1* M.2 B-key (3042/3052, PCI-Ex1/USB3.2/USB2.0, support 3G/4G/5G Module)
– 1* PCI-E x16 slot (Maximum power supply 75W)
Ethernet – 1* Intel® i226-V 2.5GbE
– 1* Intel® i219-LM GbE
Graphics – Intel® HD Graphics, shared Memory
– 2* HDMI 1.4 (Max Resolution : 4096×2160@30Hz, HDMI1 Co-lay VGA)
– 1* DP1.4 (Max Resolution : 5120×3200@60Hz)
– 1* LVDS/eDP (Max Resolution : LVDS: 2560×1600@60Hz)
– Support Triple Displays
Audio – HD audio: Realtek ALC888S
Watchdog Timer – From Super I/O to drag RESETCON#
– 256 segments (10sec ~ 255min)
Internal I/O – 4* USB2.0
– 2* USB3.2(Gen1)
– 2* RS232/422/485(COM1/2 Support 5V/12V TTL)
– 4* RS232 (COM3/4 Support 5/12V TTL)
– 1* SATAIII (6.0Gb/s)
– 1* LVDS/eDP (Choose one from two)
– 1* Inverter (PH2.0)
– 1* M.2 M-key (2280, PCI-Ex4 interface, Support NVMe)
– 1* M.2 E-key (2230, CNVi/PCI-Ex1/USB2.0 interface)
– 1* M.2 B-key (3042/3052, PCI-Ex1/USB3.2/USB2.0 interface)
– 1* PCI-Ex16 slot (by CPU)
– 1* GPIO (8 bit,5V)
– 1* CPU FAN (W/ Smart FAN)
– 2* System FAN (W/O Smart FAN)
– 1* 4pin DC Connector
– 1* 3pin Speaker (3W Amplifier)
– 1* Chassis intrusion
– 1* SMBUS/ I2C
– 1* AT mode
External I/O – 4* USB3.2 (Gen1)
– 2* HDMI1.4 (HMDI1 Co-lay VGA)
– 1* DP1.4
– 2* RJ45
– 1* Audio Jack (Line-out + MIC)
– 1* DC Jack
Power 12-28V DC-in
– AT: Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
Compliance – CE, FCC, RoHS, REACH compatible
Temperature – Operating Temperature: 0 ~ 60° C (with 0.7m/s air flow)
– Storage Temperature: -20 ~ 70° C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)
OS Support – Windows 10, Windows 11, Linux
